MTI Instruments非接触式测量ProTrak HD：2D / 3D激光

发布时间：2021-02-06 16:50:53 浏览：1753

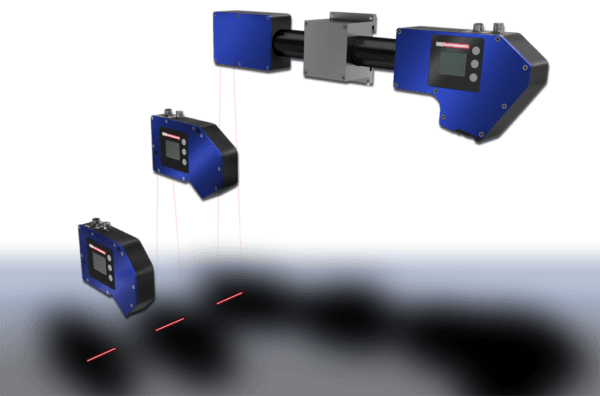

MTI Instruments非接触式测量ProTrakHD：2D/3D激光是一款精准的应用在2D和3D轮廓分析的远程控制非接触式激光传感器。ProTrakHD远程控制仿型激光位移传感器是致力于满足工业生产应用中最苛刻的全自动规格、角度、折射率和高度而制定的。ProTrakHD能够以每秒6000帧的快速速度和多达2.5μm的分辨率测量800mm。

特点

每秒1GB的传输速度

每秒6000帧

TCP/IP千兆以太网

内置式显示和控制面板

吹净范围从60mm到800mm

1200万分每秒

机器人兼容性，IP-67

可在恶劣环境中应用的附件

满足CE

NILabVIEW驱动程序，包含SDK

深圳市太阳成tyc33455ccwww创展科技有限公司，优势直接渠道提供MTI Instrument s订货服务，欢迎咨询。

详情了解MTI Instrument s请点击：/brand/70.html

或联系我们的销售工程师：0755-83642657 QQ: 2295048674


P/N	Model	Measurement Range	Accuracy	Resolution	Interface	Type	Frequency Response
8000-1034-060	PT-HD 60/30/52	Zrange =60 mm, Xrange =22 mm	0.025% FSR	Zresolution=2?m	Ethernet	RED Laser, 2M Laser Class	6kHz
8000-1035-060	PT-HD 60/30/52	Zrange =60 mm, Xrange =22 mm	0.025% FSR	Zresolution=2?m	Ethernet	BLUE Laser, 2M Laser Class	6kHz
8000-1036-060	PT-HD 60/30/52	Zrange =60 mm, Xrange =22 mm	0.025% FSR	Zresolution=2?m	Ethernet	RED Laser, 3R Laser Class	6kHz
8000-1037-060	PT-HD 60/30/52	Zrange =60 mm, Xrange =22 mm	0.025% FSR	Zresolution=2?m	Ethernet	BLUE Laser, 3R Laser Class	6kHz
8000-1039-060	PT-HD 60/30/52	Zrange =60 mm, Xrange =22 mm	0.025% FSR	Zresolution=2?m	Ethernet	BLUE Laser, 3B Laser Class	6kHz
8000-1034-130	PT-HD 130/50/110	Zrange =130 mm, Xrange =60 mm	0.025% FSR	Zresolution= 3.2?m	Ethernet	RED Laser, 2M Laser Class	6kHz
8000-1035-130	PT-HD 130/50/110	Zrange =130 mm, Xrange =60 mm	0.025% FSR	Zresolution= 3.2?m	Ethernet	BLUE Laser, 2M Laser Class	6kHz
8000-1036-130	PT-HD 130/50/110	Zrange =130 mm, Xrange =60 mm	0.025% FSR	Zresolution= 3.2?m	Ethernet	RED Laser, 3R Laser Class	6kHz
8000-1037-130	PT-HD 130/50/110	Zrange =130 mm, Xrange =60 mm	0.025% FSR	Zresolution= 3.2?m	Ethernet	BLUE Laser, 3R Laser Class	6kHz
8000-1039-130	PT-HD 130/50/110	Zrange =130 mm, Xrange =60 mm	0.025% FSR	Zresolution= 3.2?m	Ethernet	BLUE Laser, 3B Laser Class	6kHz
8000-1034-260	PT-HD 260/150/230	Zrange =260 mm, Xrange =80 mm	0.025% FSR	Zresolution=9.6?m	Ethernet	RED Laser, 2M Laser Class	6kHz
8000-1035-260	PT-HD 260/150/230	Zrange =260 mm, Xrange =80 mm	0.025% FSR	Zresolution=9.6?m	Ethernet	BLUE Laser,2M Laser Class	6kHz
8000-1036-260	PT-HD 260/150/230	Zrange =260 mm, Xrange =80 mm	0.025% FSR	Zresolution=9.6?m	Ethernet	RED Laser, 3R Laser Class	6kHz
8000-1037-260	PT-HD 260/150/230	Zrange =260 mm, Xrange =80 mm	0.025% FSR	Zresolution=9.6?m	Ethernet	BLUE Laser, 3R Laser Class	6kHz
8000-1039-260	PT-HD 260/150/230	Zrange =260 mm, Xrange =80 mm	0.025% FSR	Zresolution=9.6?m	Ethernet	BLUE Laser, 3B Laser Class	6kHz
8000-1034-520	PT-HD 520/290/445	Zrange =520 mm, Xrange =165 mm	0.025% FSR	Zresolution=17.8?m	Ethernet	RED Laser, 2M Laser Class	6kHz
8000-1035-520	PT-HD 520/290/445	Zrange =520 mm, Xrange =165 mm	0.025% FSR	Zresolution=17.8?m	Ethernet	BLUE Laser,2M Laser Class	6kHz
8000-1036-520	PT-HD 520/290/445	Zrange =520 mm, Xrange =165 mm	0.025% FSR	Zresolution=17.8?m	Ethernet	RED Laser, 3R Laser Class	6kHz
8000-1037-520	PT-HD 520/290/445	Zrange =520 mm, Xrange =165 mm	0.025% FSR	Zresolution=17.8?m	Ethernet	BLUE Laser, 3R Laser Class	6kHz
8000-1039-520	PT-HD 520/290/445	Zrange =520 mm, Xrange =165 mm	0.025% FSR	Zresolution=17.8?m	Ethernet	BLUE Laser, 3B Laser Class	6kHz
8000-1034-800	PT-HD 800/450/720	Zrange =800 mm, Xrange =270 mm	0.025% FSR	Zresolution=28?m	Ethernet	RED Laser, 2M Laser Class	6kHz
8000-1035-800	PT-HD 800/450/720	Zrange =800 mm, Xrange =270 mm	0.025% FSR	Zresolution=28?m	Ethernet	BLUE Laser, 2M Laser Class	6kHz
8000-1036-800	PT-HD 800/450/720	Zrange =800 mm, Xrange =270 mm	0.025% FSR	Zresolution=28?m	Ethernet	RED Laser, 3R Laser Class	6kHz
8000-1037-800	PT-HD 800/450/720	Zrange =800 mm, Xrange =270 mm	0.025% FSR	Zresolution=28?m	Ethernet	BLUE Laser, 3R Laser Class	6kHz
8000-1039-800	PT-HD 800/450/720	Zrange =800 mm, Xrange =270 mm	0.025% FSR	Zresolution=28?m	Ethernet	BLUE Laser, 3B Laser Class	6kHz
